The Many Uses of Diamond Core Drilling

July 11, 2023

What is diamond core drilling?

Diamond core drilling is an efficient, precise way of drilling through concrete, stone, asphalt, brick and other hard surfaces. This process is used for creating precise circular cuts in these materials to make room for various installations like plumbing, electrical wiring, HVAC ducts, among others. The name 'diamond core' comes from the diamond bit that is attached to the end of the drill. The diamonds give the drill bit unrivalled strength and durability to bore through even the toughest concrete.

The operation of diamond core drilling, such as those performed by our North West based company or other UK concrete cutting companies, involves using a drill with a specialist diamond core bit. The diamond bit is composed of small, industrial-grade diamonds set into a metallic, carbon steel base. As the drill spins, it grinds away the material, leaving a perfect circle in its wake.

The process begins by mounting the drill rig to the surface which needs to be drilled. The diamond bit then starts to rotate at high speeds, gradually grinding its way through the concrete. As the drill bit penetrates deeper into the material, a core of concrete is formed inside the drill bit. This core can then be removed and discarded once the drilling process is complete.

One key aspect of diamond core drilling is the use of water during the drilling process. This serves a dual purpose: it cools the diamond bit to prevent overheating and it also helps to remove the debris from the hole being drilled, which enhances the drilling efficiency.

What projects can diamond drilling be used for?

Diamond drilling is a versatile technique used in a wide variety of construction and renovation projects. At DP Diamond Drilling, we are accredited concrete specialists who use this specialist technique for a range of projects both domestic and commercial.

Our services range from commercial drilling, cutting and sawing across the United Kingdom, to domestic projects in the North West and East Midlands

One of the key projects that can benefit from diamond drilling is floor and wall hole drilling. This process is vital in creating precise openings for electrical wiring, plumbing, HVAC systems, or other utilities that need to pass through concrete structures. The precision of diamond drilling ensures minimal structural impact while providing clean, accurate holes.

Another application is in rainwater pipe drilling. For efficient water management in buildings, accurate and clean holes are required for the installation of rainwater pipes. Diamond drilling provides a non-disruptive method to achieve this, reducing the risk of structural damage and ensuring the seamless installation of the pipes.

We’ve also worked on restoration projects, such as our work at Ramsbottom Bridge. Here, diamond drilling was used to carefully remove sections of the bridge to make room for new structural elements to be added to the bridge.

We are committed to providing high-quality commercial and domestic services, using precise methods like diamond drilling and sawing to meet our clients' diverse needs.

What are the benefits of using diamond drills?

Diamond drills, as their name suggests, use diamonds - the hardest natural resource available - to cut through tough materials such as concrete and brick.

When other drills falter and fail, diamond drills are able to cut through these materials with remarkable ease, making them an invaluable asset in the construction industry. One of the key benefits of diamond drills is their exceptional durability, as diamond drills have a much longer lifespan compared to other types of drills. This durability translates into reduced need for replacement parts and decreased downtime due to maintenance, thus improving overall productivity.

Another significant benefit is the precision they offer. Diamond drills produce cleaner, perfect holes, minimising the risk of damage to the surrounding material. This is especially crucial when drilling through concrete or brick, where any error can lead to costly and time-consuming repairs.

Furthermore, diamond drills are incredibly efficient. The hardness of the diamonds allow for effective cutting even at lower speed, which reduces energy consumption and the potential for overheating. This not only makes diamond drills more cost-effective over time, but also safer to use.

Lastly, the versatility of diamond drills cannot be overstated. They can cut through a wide range of materials beyond just concrete, including brick, asphalt and stone. This makes them a versatile tool suitable for many different projects and applications.

Is diamond drilling noisy?

Whilst all construction projects tend to come with the occasional loud noise, diamond drills are low-vibration and work much more efficiently than other drills, meaning that they’re a much quieter option.

Does diamond drilling make a lot of mess?

Contrary to common assumptions, diamond drilling does not cause a lot of mess. In fact, it is an excellent method to significantly reduce the amount of waste and debris produced during the process.

Diamond drilling is a non-percussive method that uses a diamond drill bit to cut through hard materials, including concrete. This method produces less dust and noise compared to traditional drilling techniques. It is also more accurate, reducing the risk of damaging surrounding structures and thus, minimising cleanup time after the job is done.

When drilling through concrete, one of the significant challenges can be managing the dust and debris that are produced. However, with diamond drilling, this problem is significantly reduced. Our usage of water as a lubricant and coolant whilst drilling through masonry materials also helps to control the dust, as the water combines with the concrete dust to create a slurry, which can be easily cleaned up afterwards.

We pride ourselves on our cleanliness, which is why we have found ourselves working across the country on projects both large and small.

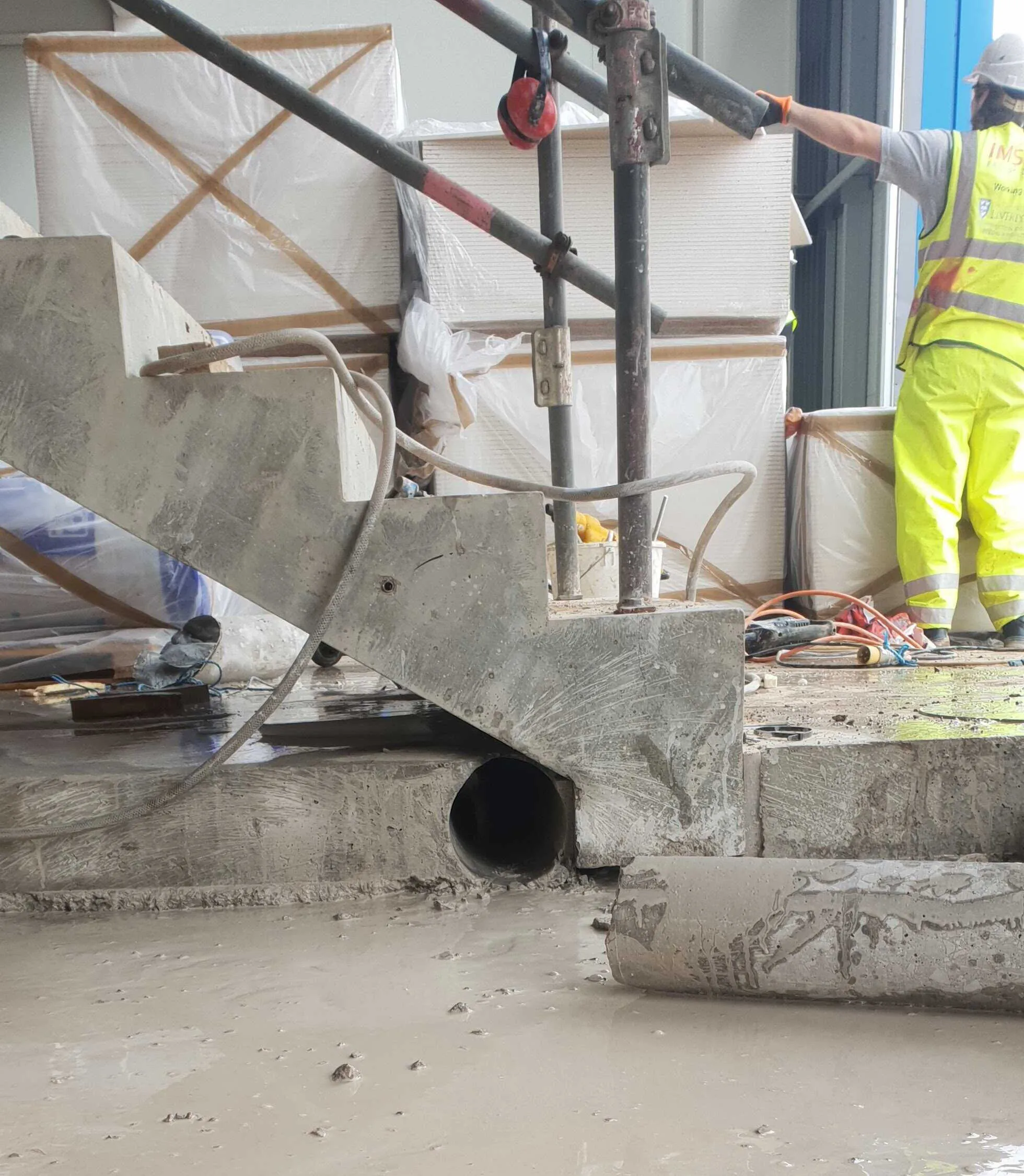

Diamond drilling slurry
